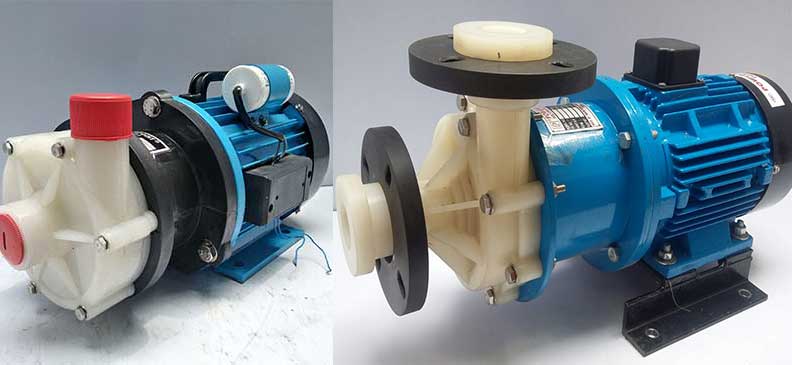

magnetic drive design eliminates the conventional method of shaft coupling. Hence the pump casing is fully sealed from drive end which gives away the use of conventional sealing system. There is no seal used and hence no troublesome seal repairing and replacement, leaking and production lost. Impeller and drive magnate are permanent rare earth magnets. They prevent slippage and ensure that full motor horsepower is converted into pumping power.
- * All pumps are rated for continuous duty with class “E” insulation.
- * All pumps are rated for continuous duty with class “E” insulation.
- * SS-316 magnetic pumps are available up to 5HP
ADVANTAGES:- 100% Leak proof pumps due to magnetic drive arrangements. No shaft seal used which automatically solves problems of seal leakage and water & tear. Friction free operation for reduced power consumption. High power permanent magnets ensure full power transfer and eliminates slippage. All pumping parts are non-metallic, which gives supprior corrosion resistance, simple and easy to operate and maintain. Long life liable and trouble free operation.
APPLICATIONS & USER INDUSTRIES:- Ideal for transfer of corrosive chemicals , plating chemicals, acids, dyes, solvents, toxic and & fuming liquids, petrol kerosene etc. use full in chemical industries, pharmaceuticals, and food processing industries, electroplating galvanizing/ anodizing plants. Laboratory equipment and PCB plants. Medical equipment and x-ray film plants. Textile dyeing houses. Liquid dispensing machine and chemical filtration equipments. For hazardous duty condition with flame proof motors. High efficiency due to permanent magnet power coupling.
Acid Transfer Pump Range:-
- * CAPACITY :- FROM 10 LPM TO 750 LPM
- * HEAD :- UP TO 40 MTRS.
- * MATERIALS CONSTRUCTION:- POLY PROPYLENE GLASS FILLED, PVDF UP TO 110° C – SS316.
- * OPERATING TEMP- PP UP TO 80°C , PVDF UPTO 110°C
- * SPECIAL PUMPS FOR HIGH TEMPARATURE UP TP 150°C AND 250°C FOR SS-316

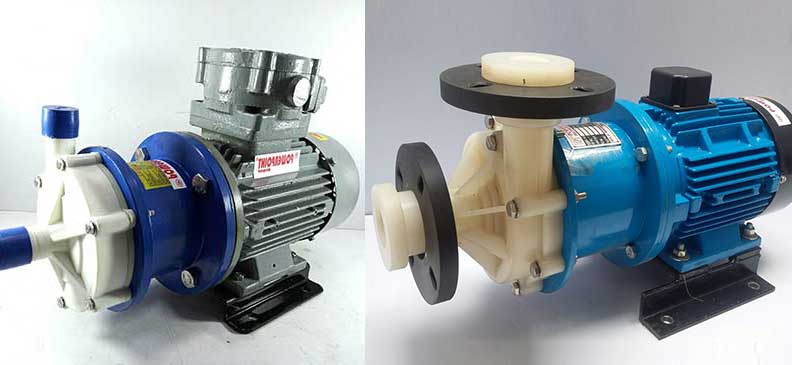

NOTE:- All MDP magnetic drives pump are available in monoblock type only with Std TEFC motor flame proof motor.

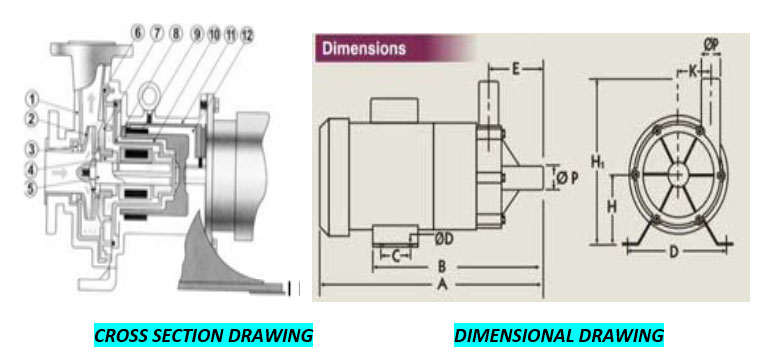

MATERIALS CONSTRUCTION
| PART NAME | PP MOC | PVDF MOC |
|---|---|---|
| Suction casing & cover | GF-PP | PVDF |
| Impeller | GF-PP | PVDF |
| Impeller shaft | High alumina ceramic | High alumina ceramic/ hast alloy |
| Bush | GFT/CFT | GFT/CFT |
| Thrust washer | High alumina ceramic | High alumina ceramic/ hast alloy |
| O ring | Viton | Viton |
| Magnets | Permanent high power rate earth | Permanent high power rate earth |
| Mounting bracket | Aluminum | Aluminum |
| Motor body | Aluminum | Cast iron |

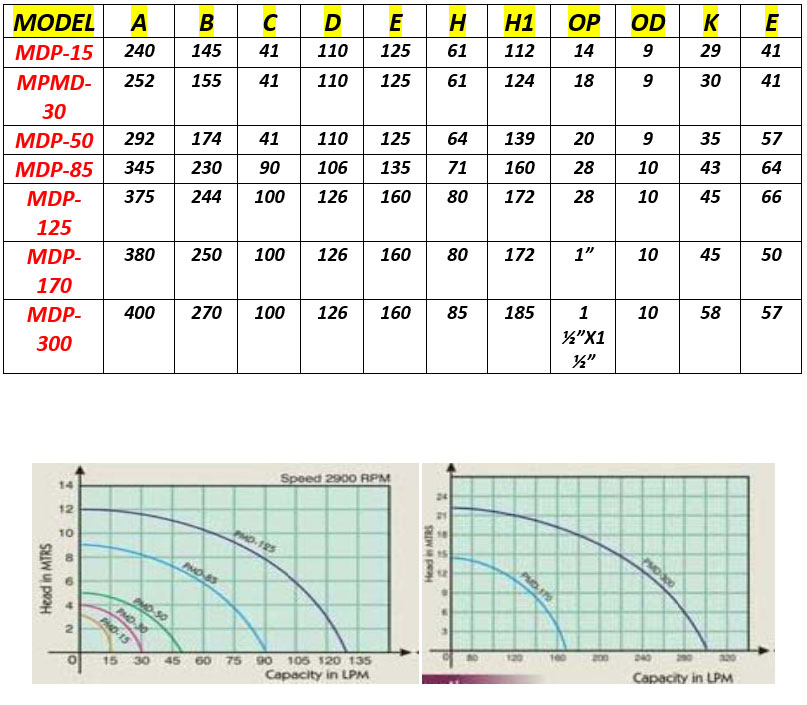

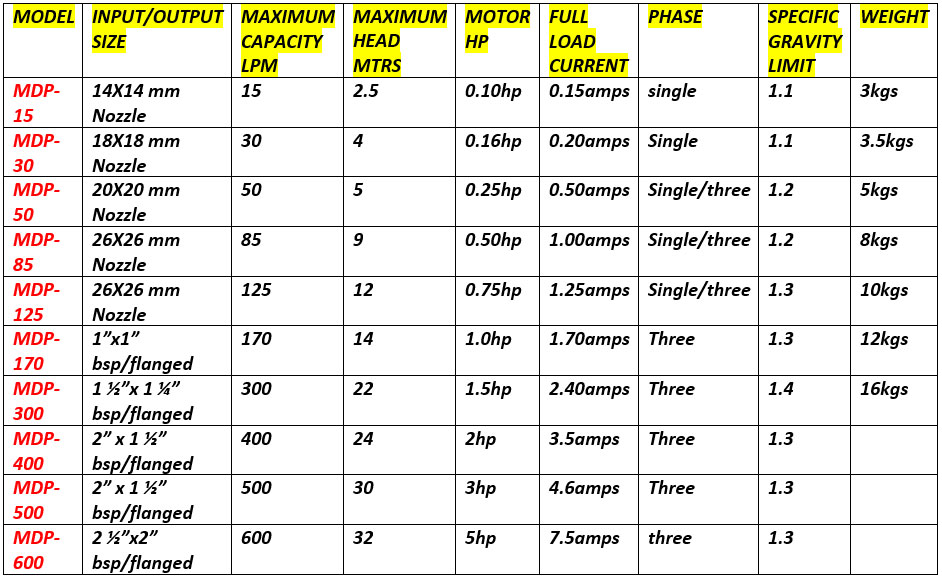

PUMP SPECIFICATION:- 2900 RPM
