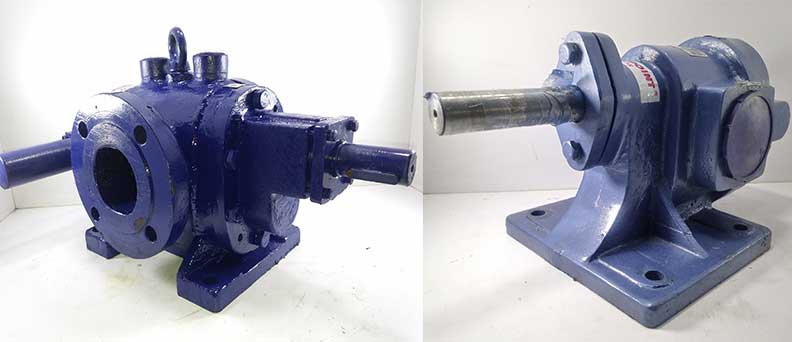

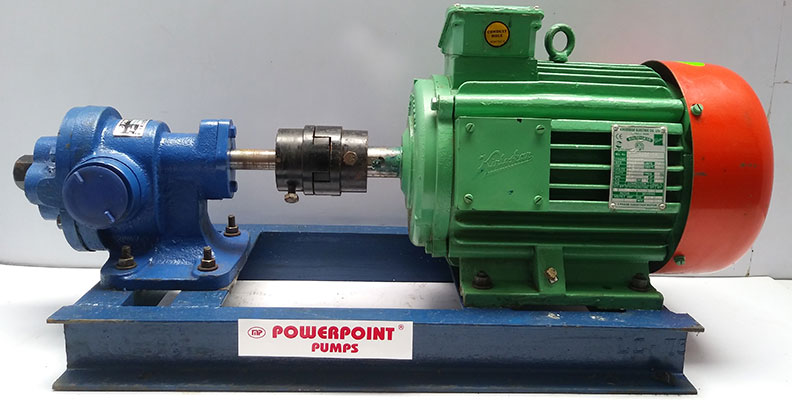

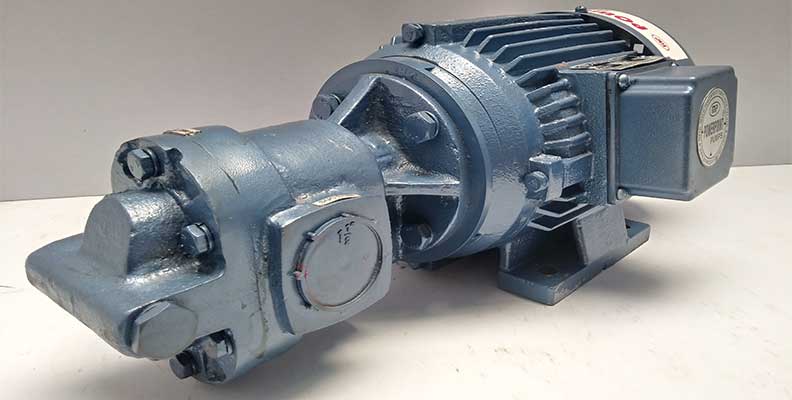

Rotary Gear Pump

Rotary Gear Pump , dealers & Suppliers in Kolkata
Rotary Gear Pump , dealers & Suppliers in Kolkata

Rotary Gear Pump - and Efficient Fluid Handling with Rotary Gear Pumps from Mach Powerpoint Pumps India Pvt. Ltd.

SPECIAL FEATURES

  • * Single helical gears
  • * Hardened & ground shaft
  • * Max. capacity -500 Lpm
  • * Max. pressure – 10 kg/ cm2
  • * Max temperature – 80°c
  • * Modified version for high temp up to - 200°c
  • * Modified version for molasses and vacuum Application
  • * Higher aesthetic valve

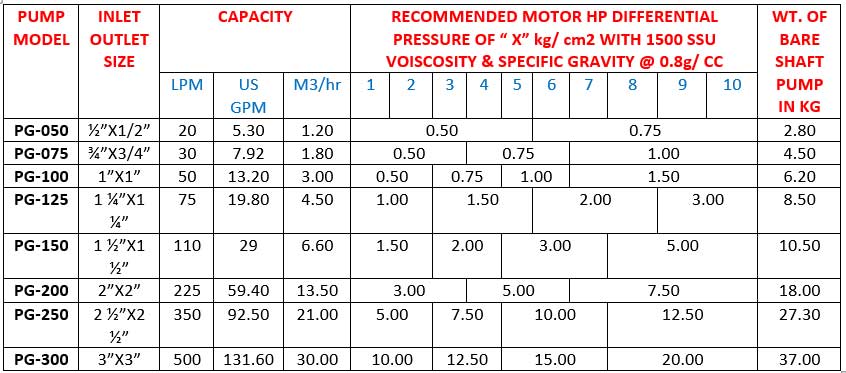

HORSE POWER AND CAPACITY CHART

Rotary Gear Pump Specification chart

Rotary Gear Pump Details

SR NO PART MOC VISCOSITY SPEED CAPACITY
1 CASING CI GR 20 UP TO 500CST 1500 RPM 100%
2 R.V. COVER CI GR 20 500-1500 CST 1000 RPM 66%
3 GLAND COVER CI GR 20 1500-5000 CST 750 RPM 50%
4 SHAFTS EN – 9- H & G 5000-15000 CST 500 RPM 33%
5 GEARS EN-8 15000-30000 CST 380 RPM 25%
6 GLAND SEAL OIL SEAL 30000-50000 CST 300 RPM 20%
7 SHAFT BRG SINTREAD BRONZE BUSH 50000-100000 CST 200 RPM 13%
8 R.V. PLUG BRASS / M.S / ALUMINUM 100000-200000 CST 150 RPM 10%
We Are The Best LPG transfer pump, Acid transfer pump, Motorized Barrel Pump, SS Centrifugal pump, Pressure Test Pump, Rotary Gear Pump, AODD Pump, Chemical process Pump in all over Kolkata, West Bengal and India!!
