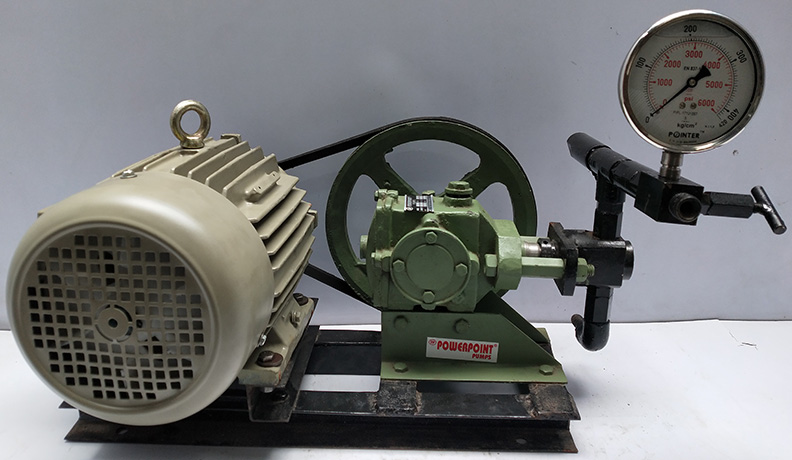

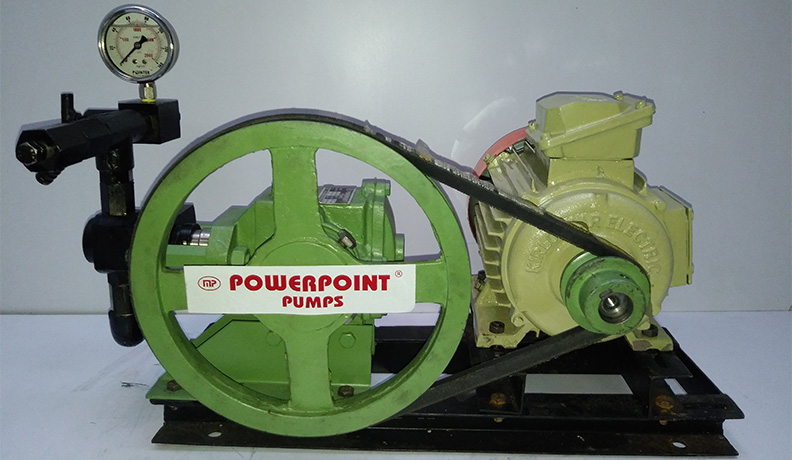

Pressure Test Pump

APPLICATIONS FOR HYDRAULIC TESTING OF

• • Boilers
• • Pressure Vessels
• • C.I. Mains
• • Castings parts
• • Gas Cylinders
• • Pipes and Tubes Parts Subjected to Hydraulic Pressure Standard Accessories
• • M.S. Fabricated Pail
• • Brass Foot Valve
• • G.M.J.S.S Check Valve
• • Brass Pressure Release Cock
• • Pressure Hose With Attachments
• • Pressure Gauge
• • Pressure Gauge for Testing Up to 705 kg/cm2 (10,000 PS.I.)

PERFORMANCE RANGE

• * Test Pressure Up to 1000 kg/cm2
• * Water Flow Capacity up to 150 LPH
• * Motor Up to 7.5 hp

PUMP MODEL	PRESSURE KG/CM2	CAPACITY IN LPH	MOTOR KW/HP	MOTOR RPM
HT-70	70	100	0.75/1	1440
HT-140	140	100	1.5/2	1440
HT-211	211	95	1.5/2.0	1440
HT-350	350	90	2.0/3.0	1440
HT-500	500	80	3.7/5	1440
HT-700	700	80	3.7/5	1440
HT-1000	1000	35	5.5/7.5	1440

SPECIAL FEATURES

• * Electric Motorized driven system
• * Totally Enclosed drive Mechanism
• * Heavy duty precision gear box
• * Large Air Chamber
• * Self Oiling system quick acting Relief valve
• * Totally Dependable, and Efficient performance.

STANDARD ACCESSORIES

• * Pressure Release cock made from brass metal
• * Discharge pressure hose with attachment of ½” BSP Length 2 Mtrs.
• * Stainless Steel Glycerin Filled Pressure gauge with 4” Dial
• * Suction & Discharge valve (NRV) Made from stainless steel material
• * Pressure set valve made from Stainless steel
• * Pump air chamber made from Mild steel
• * Pump stand made from Mild steel 3” x 1 ½” C Channel

OPTIONAL ACCESSORIES

• * Water tank with water capacity of 50 Liters 7 made from Mild steel metal
• * Suction Hose with 1mtrs Long
• * Pump Trolley with four wheels
• * Pulley Guard made from Mild steel

MATERIAL OF CONSTRUCTION

CRANKCASE:- Made of close grain cast iron body with top Inspection Cover which makes the entire crank mechanism easily accessible for maintenance inspection and spares replacement. Heavy duty (Bull - Dozer Type) Construction Provides practically vibration free operation bringing long trouble free performance.

GERING:- Heavy duty hob cut gears with eccentric, running on EN-8 shaft built in reduction gear drive with M.S.pinion and shaft.

BEARINGS:- The drive shaft is supported by Ball Bearings.

LUBRICATION:- Splash lubrication is maintained by gears splashing up oil from sump.

PLUNGER:- Harden & ground plunger offers corrosion & abrasion resistance and permits long life.

VALVE BODY:- Heavy duty M.S. body with G.M. working parts is specially designed for high pressure working. The passages allow branching and merging of suction and discharge flows with minimum losses.

N.R.V. VALVES:- SS or GM Valves. Valve seats, and springs are practically free from corrosion and can without fatigue.

CYLINDER:- M.S. Fabricated for Heavy duty service.

SEALS:- Synthetic rubber seals are used fir leak proof and long working life.
